Introduction

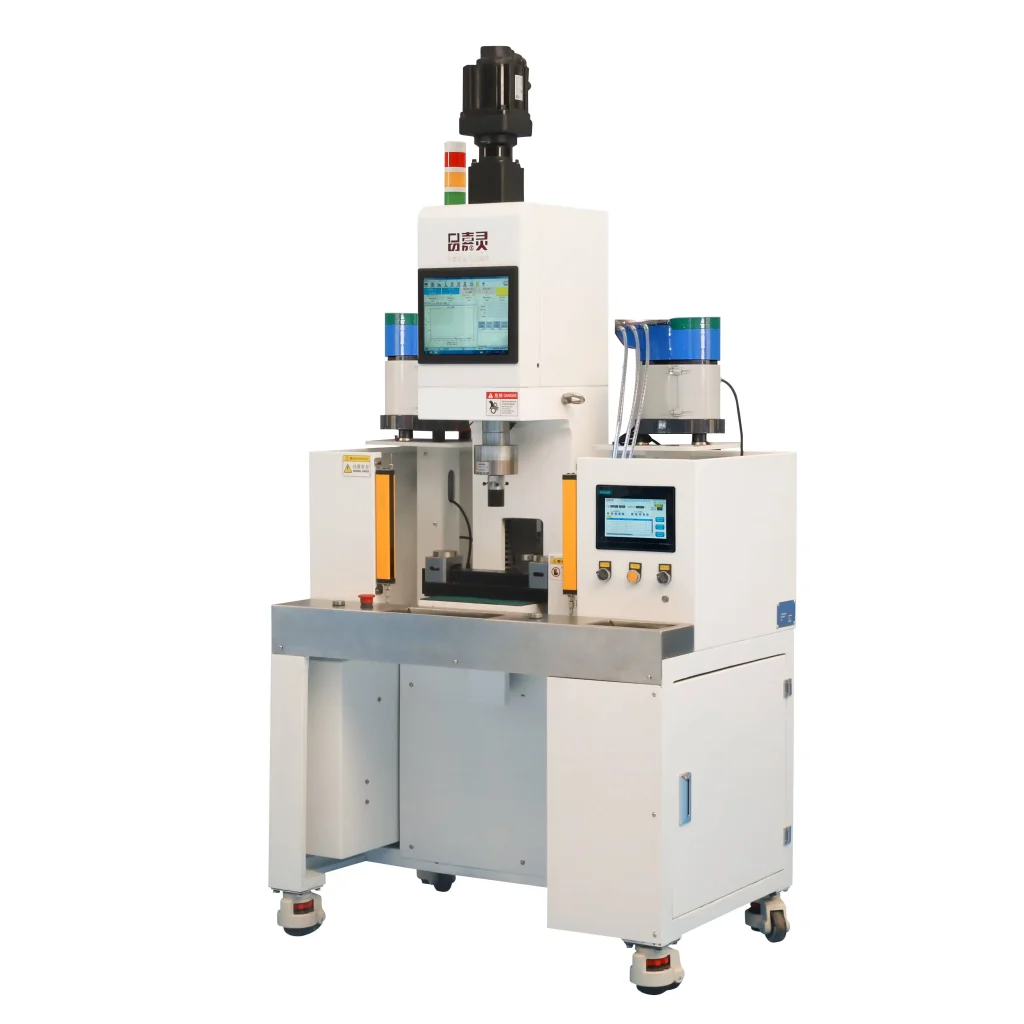

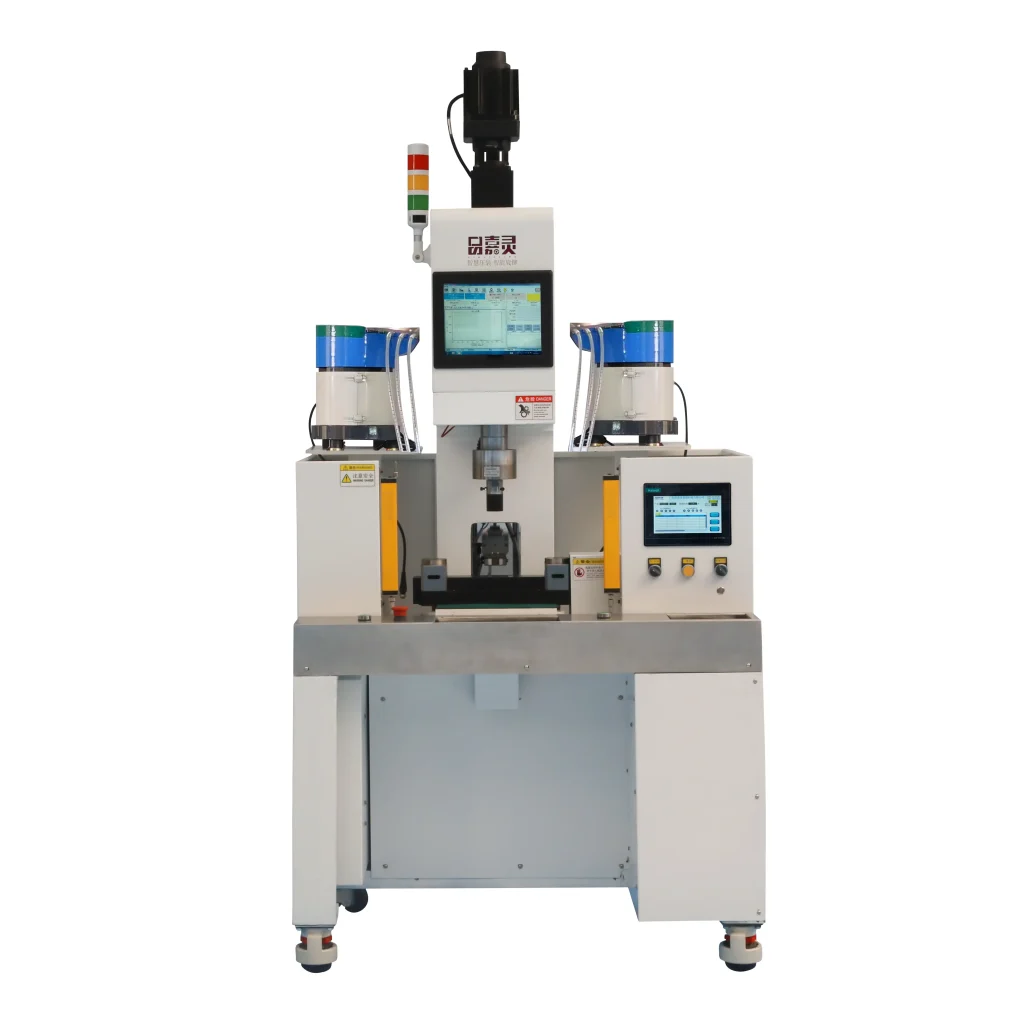

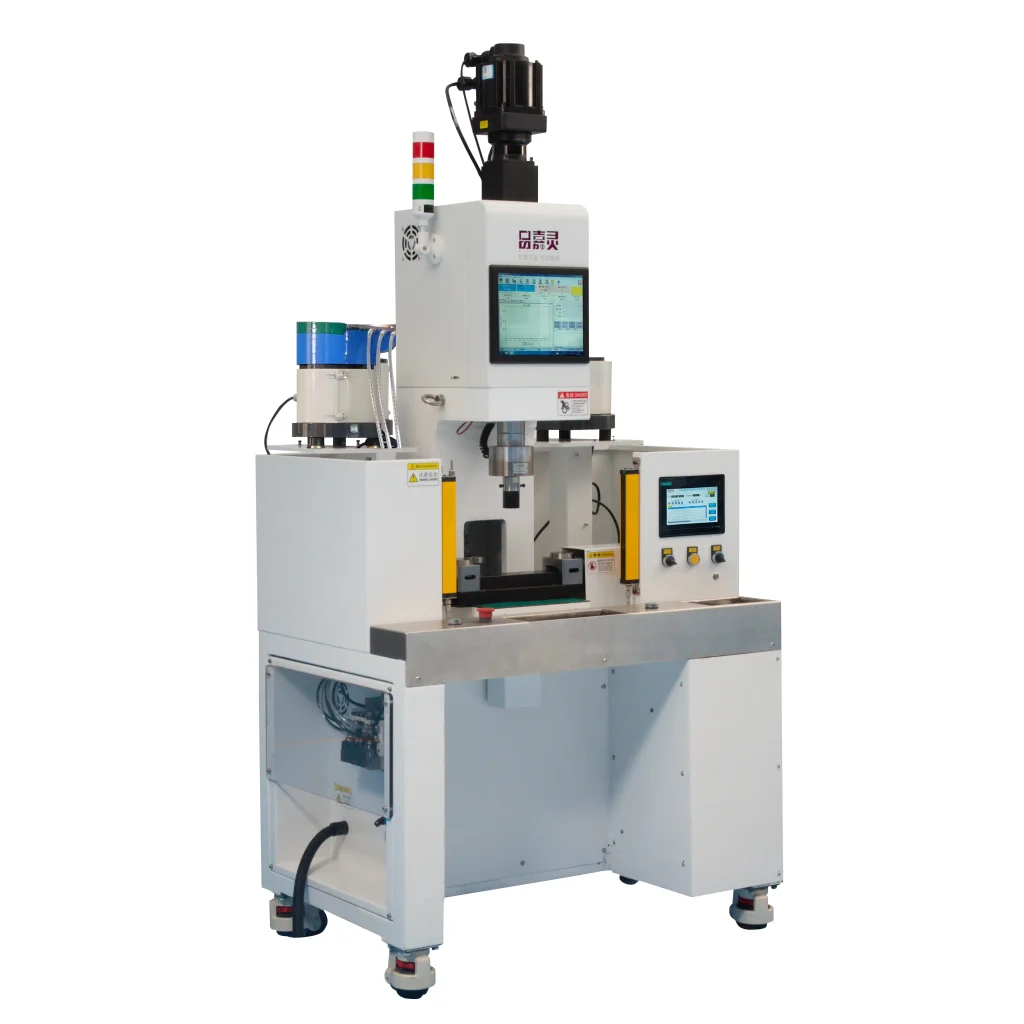

This semi-automatic servo pin press adopts a high-precision servo motor drive system, with closed-loop force and position real-time monitoring. It realizes precise pin pressing, riveting and press-fitting of metal pins, terminals and connectors. Compared with pneumatic and ordinary hydraulic presses, it features controllable pressing speed, adjustable pressure, real-time curve recording, over-pressure protection and position alarm. It is widely used in automotive electronics, new energy components, PCB boards, wire harness connectors, precision plastic parts and hardware assembly.
Operators load workpieces manually; the machine automatically completes pressing, data storage and NG judgment. It supports data export for traceability, which meets the quality control requirements of mass precision assembly.
Parameter Table
表格
| Item | Specification |
|---|---|
| Model | Semi-Automatic Servo Pin Press |
| Rated Press Force | 500N / 1000N / 2000N / 3000N (Optional) |
| Stroke Range | 0–100mm (Customizable) |
| Position Accuracy | ±0.01 mm |
| Force Detection Accuracy | ±1% F.S. |
| Press Speed | 0.1–80 mm/s, adjustable |
| Control System | Servo closed-loop control + Touchscreen HMI |
| Working Mode | Manual loading, automatic pressing |
| Data Function | Real-time force-displacement curve, data storage, NG alarm, USB export |
| Power Supply | AC220V, 50/60Hz |
| Air Requirement | 0.4–0.6 MPa (for fixture clamping, optional) |
| Working Table Size | Custom per fixture requirement |
| Machine Weight | 120–260 kg (depends on force and structure) |
| Application | Connector pin pressing, terminal press-fit, PCB pin insertion, electronic component riveting |
Core Features
- Servo closed-loop control, adjustable pressure, speed and position;
- High-precision force and position monitoring with curve recording;
- Overload, over-travel and NG product automatic alarm;
- Simple HMI operation, easy recipe storage for different products;
- Compact frame, low noise, stable for long-run mass production.
