Desktop K-Frame Servo Press Machine

Send Inquiry

Contact Us For Bulk Price & Technical Specification

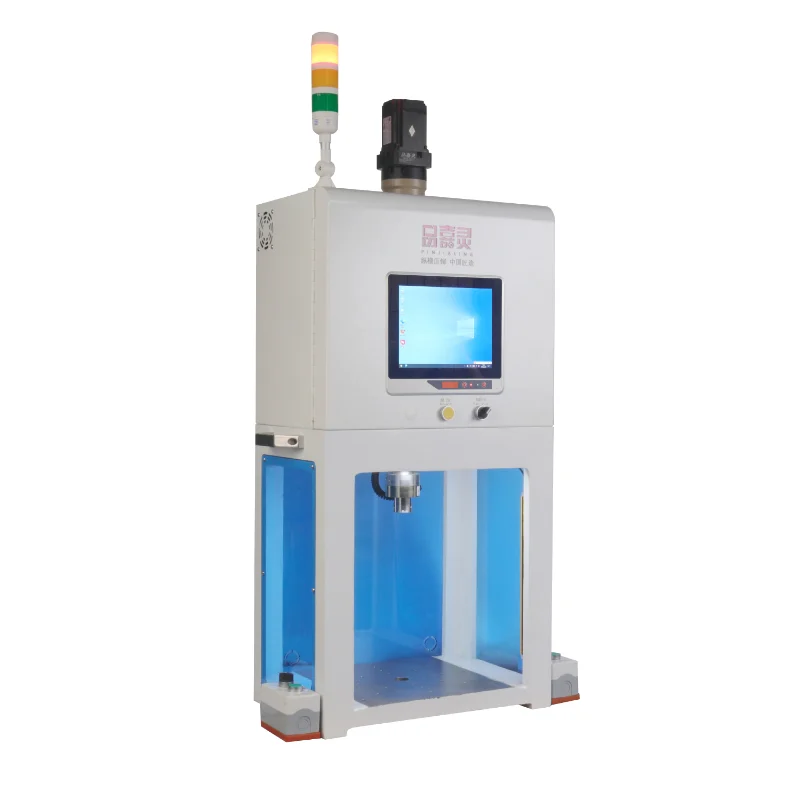

This desktop K-frame servo press machine adopts a rigid K-shaped frame structure. Compared with the C-frame type, its triangular force-bearing structure delivers better anti-deflection performance under offset loading. It is driven by a servo electric cylinder with closed-loop force and position control, supporting programmable pressure, speed and holding time.

The machine captures real-time force-displacement curves and executes automatic OK/NG judgment. Product recipes are saved via touchscreen HMI. It is ideal for precision press-fitting of small components where lateral offset load may occur, widely applied in electronics, automotive sensors, small bearings and connector terminals for small workstations and laboratory verification.

Specification Table

ParameterSpecification
ModelPIL-K-5KN/20KN
Max. Pressure (kN)5/20
Effective Stroke (mm)100–150 (customizable)
Servo Motor (mm)400
Crossbeam (mm)170
Force Resolution (%)0.05
Displacement Resolution (mm)0.001
Max. Speed (mm/s)125
Press-Fit Speed (mm/s)0.01–35
Holding/Dwell Time (s)0–600
Positioning Accuracy (mm)±0.01
Pressure Accuracy ClassClass 1
Overall Dimensions (mm)L670 × W350 × H1200
Approx. Weight (kg)110

Core Features

  1. Rigid K-frame triangular structure, stronger resistance to deflection under eccentric pressing
  2. Desktop compact layout, easy to integrate into small assembly workstations
  3. Servo closed-loop control for precise adjustment of force, position and speed
  4. Full pressing curve recording and quality screening for production traceability
  5. Low vibration and low noise, suitable for frequent precision assembly and sample testing
