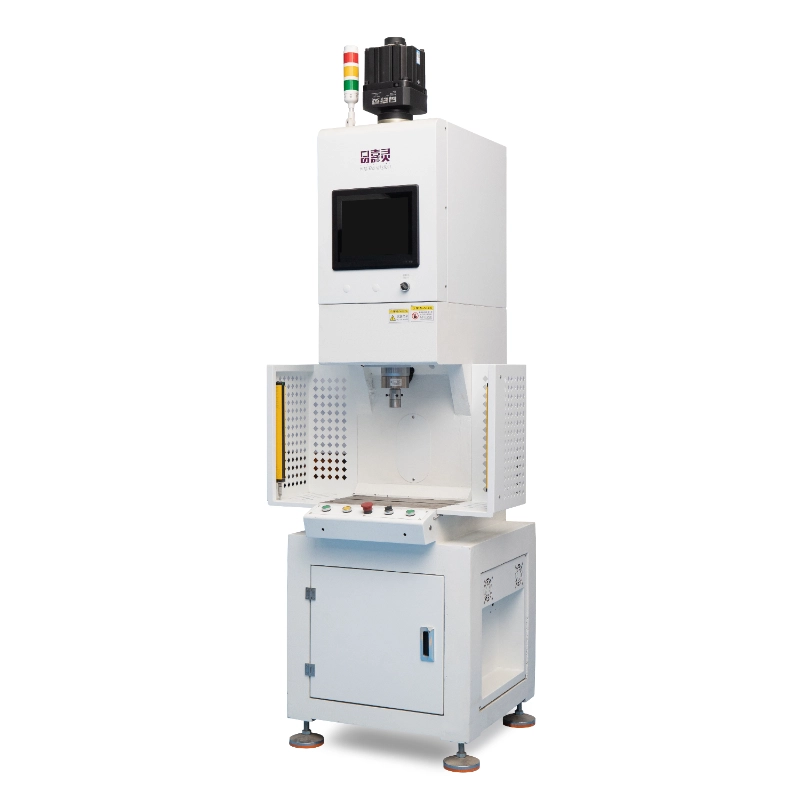

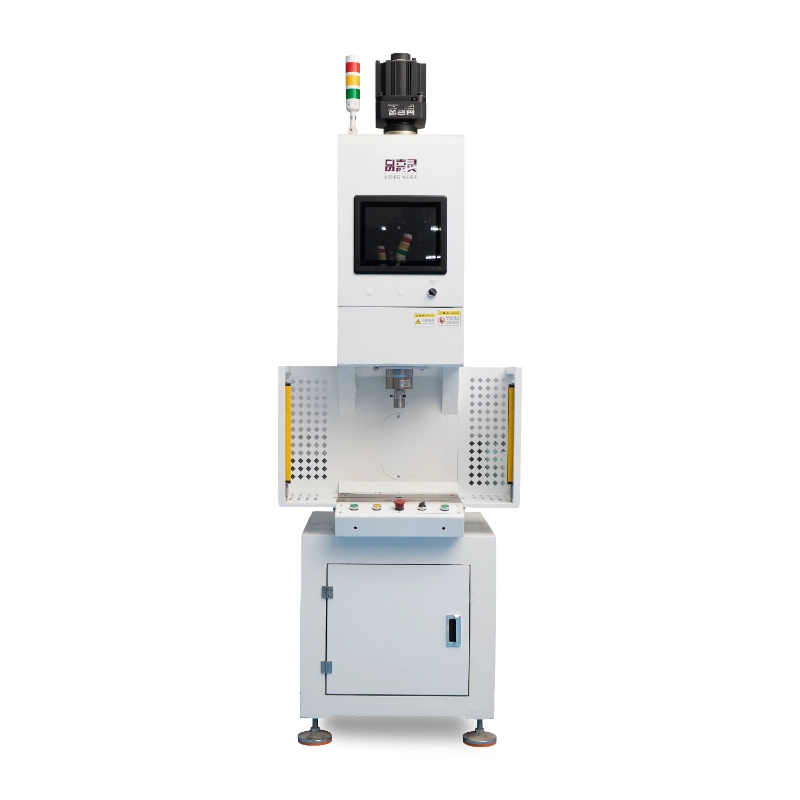

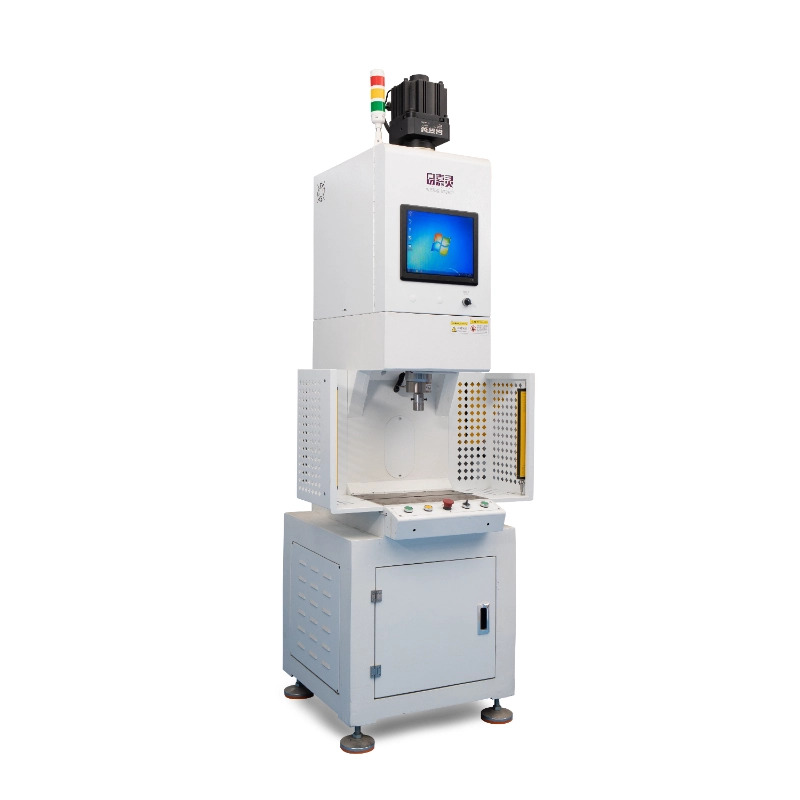

Product Overview
The C-Type Servo Intelligent Press Machine is a high-precision, fully digital electric press solution featured with rigid C-frame structure and pure servo drive technology. It eliminates hydraulic oil pollution and pneumatic instability, achieving full closed-loop control of force, position, speed and stroke. With intelligent process judgment and full data traceability, it is widely applied in aerospace, automotive, new energy, consumer electronics and medical device precision assembly. The open C-frame design allows fast workpiece loading and unloading, easy line integration and flexible batch production.
Core Advantages
1. Force & Position Dual Closed-Loop High Precision Real-time synchronization of pressure and displacement monitoring, micron-level positioning accuracy, effectively avoiding part deformation, cracking and insufficient pressing, ensuring consistent assembly quality for critical components.
2. Full Process Data Traceability Automatic recording and storage of force-displacement curve, pressing time, peak force and displacement data. All data can be exported and uploaded, fully compliant with IATF16949, AS9100 and medical quality audit standards.
3. Intelligent Online Judgment & NG Alarm The system automatically judges pass/fail status according to preset process windows. Abnormal pressing such as over-pressure, under-pressure and position deviation will trigger real-time alarm and stop, greatly reducing defective rate.
4. High Flexibility & Easy Integration Support one-click recipe storage and switching for multi-model mixed production. Compact C-frame structure saves workshop space, compatible with automatic assembly lines, desktop stations and clean workshop environments.
Application Industries
Aerospace precision assembly, automotive components & drive motor assembly, new energy battery & energy-structure parts, 3C consumer electronics, medical device precision fitting and riveting.
Technical Parameter Table
| Item | Unit | Standard Parameters |
|---|---|---|
| Press Force Range | kN | 5 / 10 / 20 / 30 / 50 / 80 / 100 (Optional) |
| Position Accuracy | mm | ±0.01 |
| Force Control Accuracy | % | ±1 |
| Max Stroke | mm | 150 (Customizable) |
| Press Speed Range | mm/s | 0.1–80 Adjustable |
| Working Table Size | mm | 320×280 (Customizable) |
| Max Opening Height | mm | 280 (Customizable) |
| Control System | — | Intelligent servo control + Touch screen |
| Data Function | — | Curve real-time display, automatic storage, data export |
| Judgment Function | — | Automatic OK/NG judgment & alarm stop |
| Power Supply | V | 220/380 Customizable |
| Machine Structure | — | High-rigidity C-type frame |
Feature Highlights
Pure electric servo drive, zero hydraulic pollution, low noise and energy saving; Intelligent process window setting supports complex pressing curve requirements; MES data docking available for smart factory; Clean and simple body design adapts to medical and electronic clean production environment.
