Product Overview

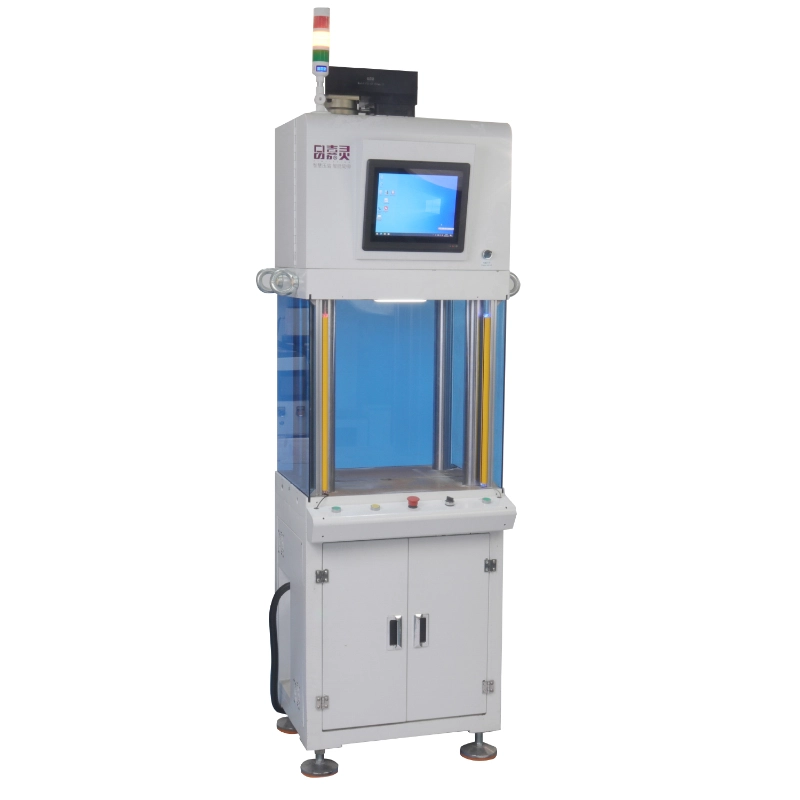

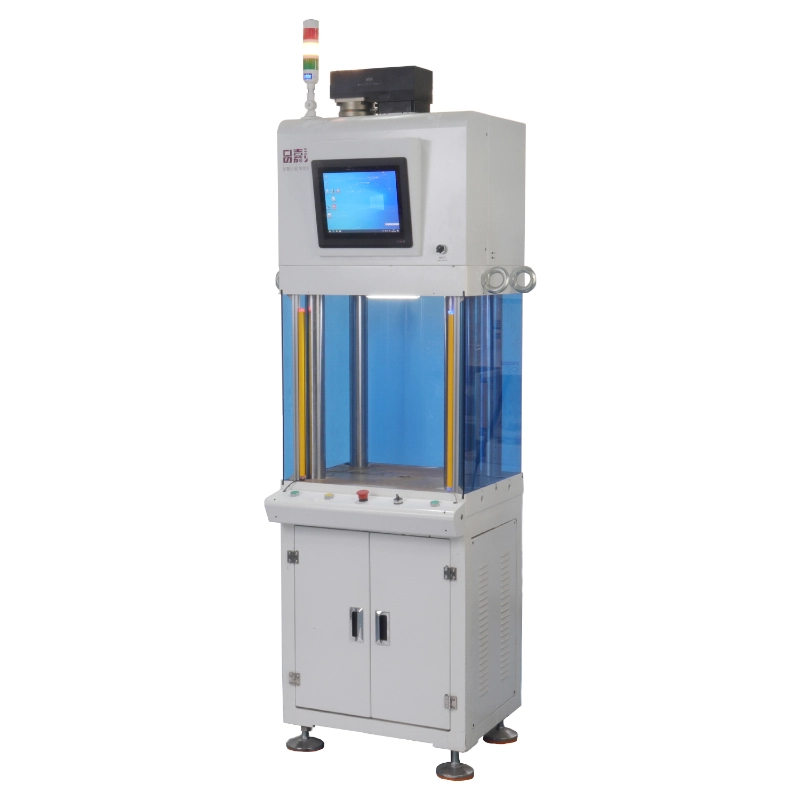

The S-Type Intelligent Servo Press Machine adopts compact S-frame structure, featuring slim vertical layout and small footprint. Equipped with servo electric cylinder, it realizes force, position and speed closed-loop control. This desktop servo press supports real-time force-displacement curve monitoring, automatic OK/NG judgment and full production data traceability. It is specially designed for small & medium precision parts assembly, widely used in consumer electronics, medical devices, small automotive components and miniature new energy parts. The S-type lightweight rigid frame is ideal for bench-top workstation and automatic line integration.
Core Advantages
- Compact S-frame saves workshop space Slender vertical S-shaped frame, small overall dimension, easy to place on workbench or embedded into automated assembly lines for compact station layout.
- Force & position dual closed-loop micro-precision control High sensitive force sensor, micron-level positioning accuracy, stable low & medium pressure output, protecting delicate tiny components from crushing or deformation.
- Full-process curve recording & data traceability Auto save force-displacement curve, peak force and displacement data, support export, meeting strict quality control requirements of 3C and medical industries.
- Quick recipe switching & simple operation Touch screen HMI for easy parameter setup. One-click save and recall of pressing programs, suitable for frequent product changeover in small-batch and multi-variety production.
Application Industries
Consumer electronics, medical implant & surgical parts, small automotive fittings, miniature new energy components, precision connectors.
Technical Parameter Table
表格
| Item | Unit | Standard Parameters |
|---|---|---|
| Press Force Range | kN | 0.5 / 1 / 3 / 5 / 10 / 20 (Optional) |
| Position Accuracy | mm | ±0.01 |
| Force Control Accuracy | % | ±1 |
| Max Stroke | mm | 100 (Customizable) |
| Press Speed Range | mm/s | 0.1–100 Adjustable |
| Working Table Size | mm | 260×220 (Customizable) |
| Max Opening Height | mm | 200 (Customizable) |
| Control System | — | Intelligent servo system + Touch screen HMI |
| Data Function | — | Real-time curve display, auto storage, data export |
| Judgment Function | — | Automatic OK/NG judgment, alarm stop |
| Power Supply | V | 220V |
| Machine Structure | — | Compact S-type rigid frame |
Feature Highlights
All-electric servo drive, oil-free, low noise and energy-saving. Desktop lightweight design; easy fixture replacement. Suitable for clean room environment of electronic and medical workshops. Optional safety grating for operation protection.
