KST Electric Grease Dispenser

Send Inquiry

Contact Us For Bulk Price & Technical Specification

Introduction

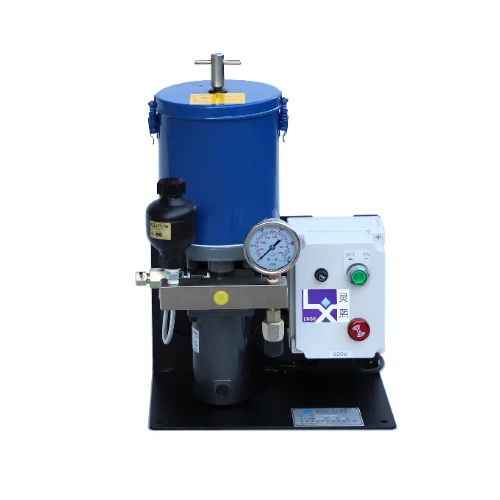

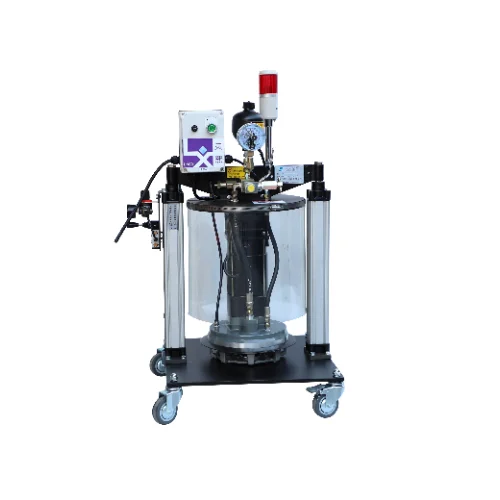

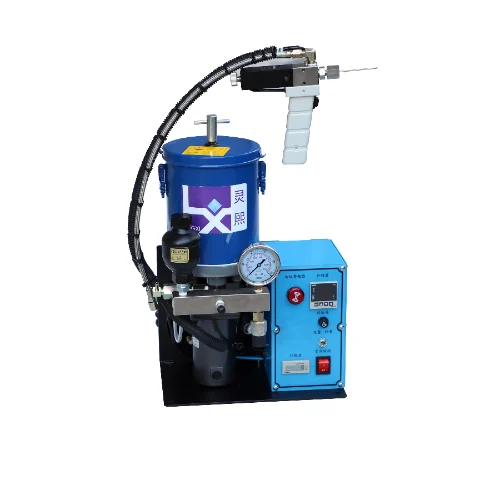

The KST electric grease dispenser is an electric-driven high-pressure grease feeding system, widely used for automatic grease filling and quantitative lubrication in automated assembly lines. It can be matched with KST metering valves to realize precise grease dispensing, suitable for high-viscosity lubricants from 00# to 3# grease.

Equipped with pressure gauge and electric drive unit, it delivers stable and adjustable output pressure. It supports continuous feeding and cycle timing control, commonly integrated into press-fitting machines, bearing assembly, automotive parts and electronic component lubrication processes. It features compact structure, easy installation and stable metering performance for mass production.

ParameterKST-F10BKST-8BKST-K10BKST-8A
Power SupplyAC220V-2P/3P, AC380-3PAC220V-2P/3PAC220V-2PAC220V-2P
Grease Tank Capacity20L2L20L2L
Discharge Flow0.5L/Min0.08L/Min0.5L/Min0.001cc-1cc
Applicable GreaseNLGI#00~#3 grease / damping greaseNLGI#00~#3 grease / damping greaseNLGI#00~#3 grease / damping greaseNLGI#00~#3 grease / damping grease
Operating Pressure30kg/cm²–120kg/cm²15kg/cm²–80kg/cm²30kg/cm²–120kg/cm²15kg/cm²–80kg/cm²
Machine Dimension320mm×370mm×1140mm320mm×220mm×550mm500mm×500mm×765mm320mm×260mm×550mm
Working Ambient Temperature-10℃ ~ +50℃-10℃ ~ +50℃-10℃ ~ +50℃-10℃ ~ +50℃
Dosing Precision———±3%
Key FeaturesGrease refilling available during operation; low grease level alarm; scraper plate separates grease from air to avoid air inclusionGrease refilling available during operation; low grease level alarm; scraper plate separates grease from air to avoid air inclusionFits standard Φ295mm (Φ285mm optional) 20L grease pail; low grease level alarmSingle / continuous operation mode; portable design; low grease level alarm; scraper plate separates grease from air

Core Features

  1. Electric drive, stable high-pressure grease supply, no need for large air source;
  2. Compatible with KST quantitative metering valve to achieve precise shot size;
  3. Wide adaptability, works with different grades of lubricating grease;
  4. Visible pressure gauge for real-time pressure monitoring;
  5. Small footprint, easy to mount on automation jigs and production lines.
