Desktop Mini C-Frame Servo Press Machine

Send Inquiry

Contact Us For Bulk Price & Technical Specification

Introduction

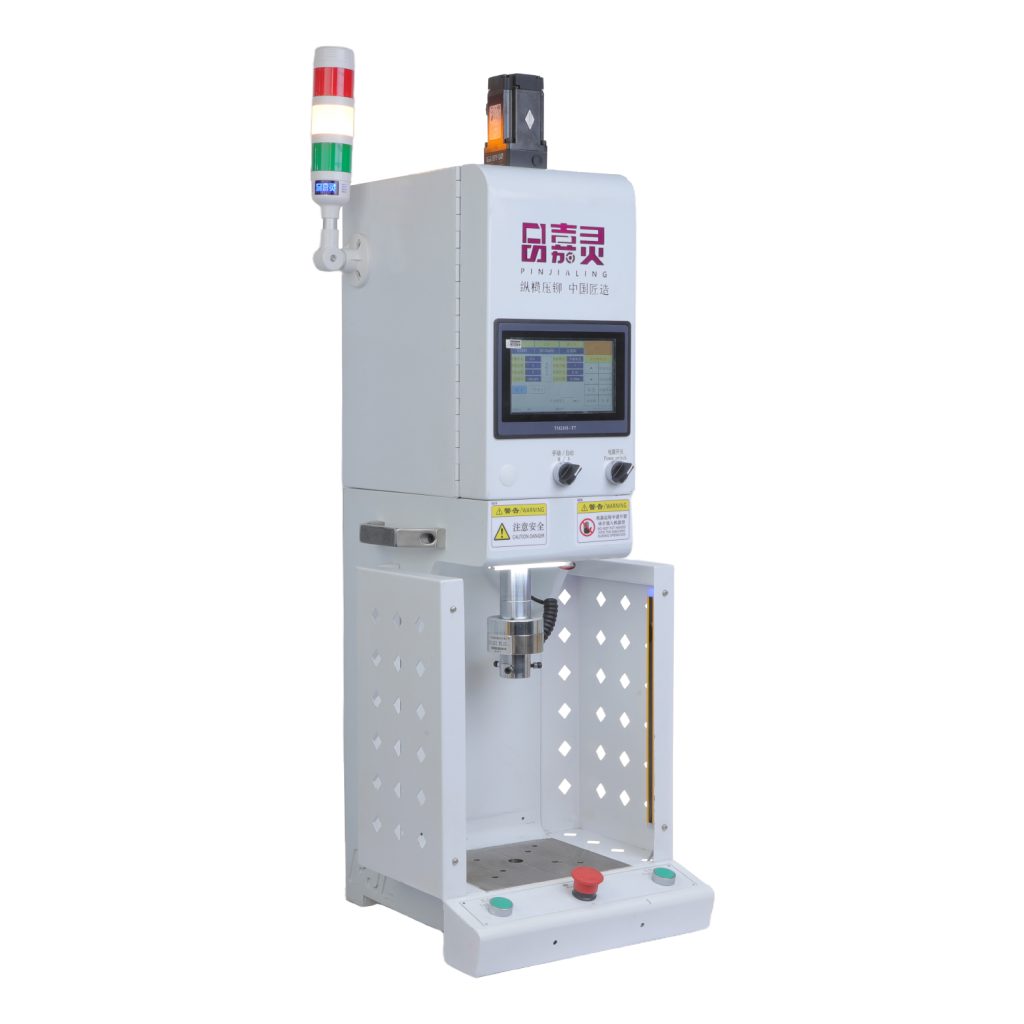

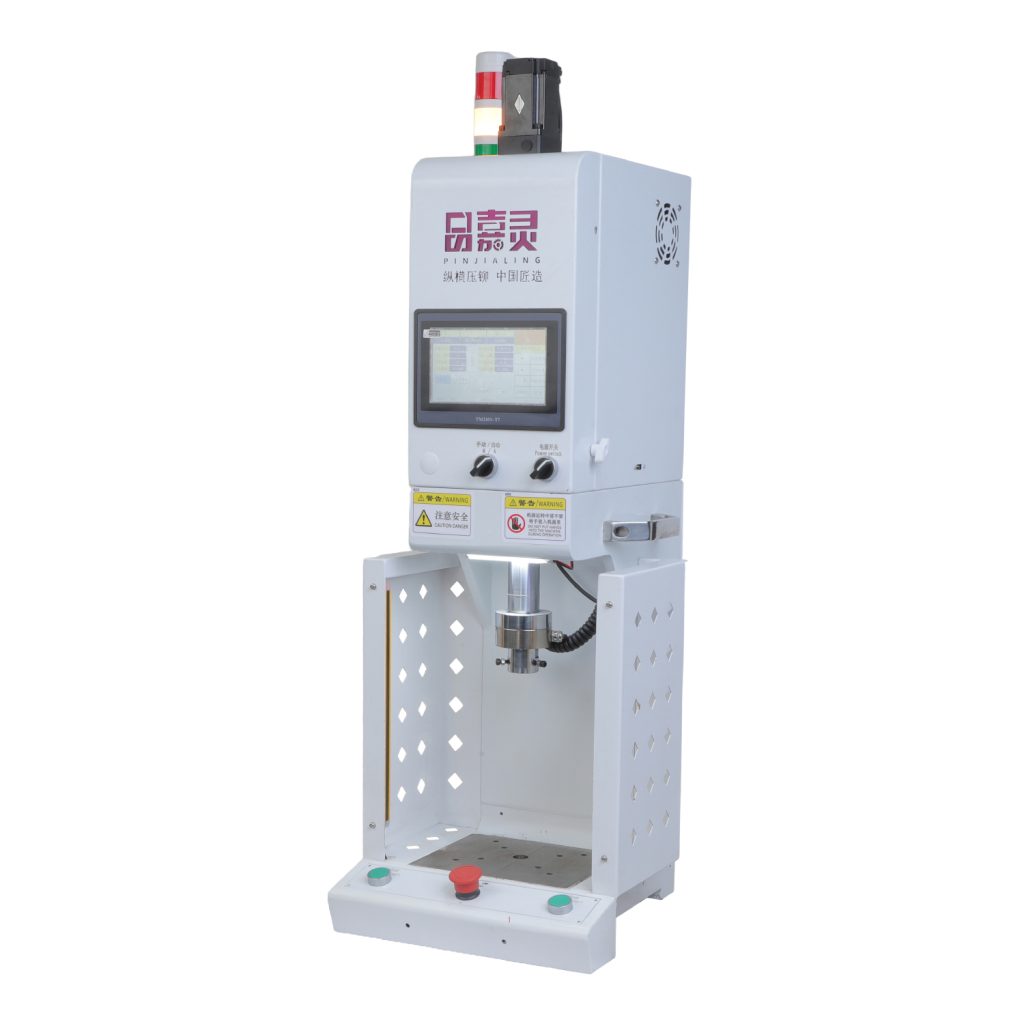

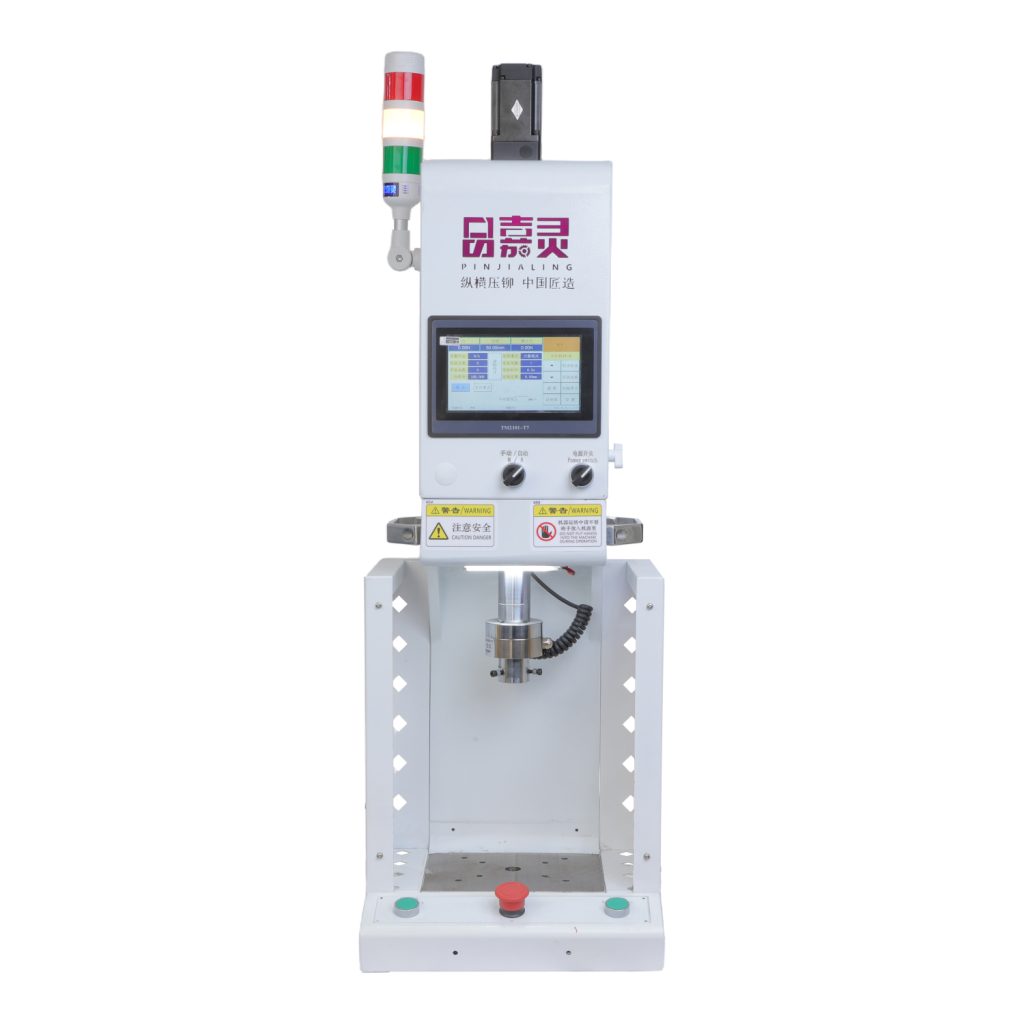

This desktop mini C-frame servo press machine is an ultra-compact precision press unit built on a mini C-type frame. Powered by a small servo electric cylinder with closed-loop force and position feedback, it enables programmable pressure, speed and dwell time for tiny component assembly.

The open C-frame design allows easy fixture mounting and quick part loading. It captures real-time force-displacement curves and automatically classifies OK/NG parts. Product recipes are saved on the touchscreen. It fits tight workspaces, widely used for micro connectors, miniature terminals, small precision hardware and lab sample verification.

Specification Table

ParameterSpecification
ModelPJL-C-5KN
Max. Pressure (kN)5
Effective Stroke (mm)100–150 (customizable)
Closed Height (mm)270
Throat Depth (mm)100
Force Resolution (%)0.05
Displacement Resolution (mm)0.001
Max. Speed (mm/s)125
Press-Fit Speed (mm/s)0.01–35
Holding Time (s)0–600
Positioning Accuracy (mm)±0.01
Pressure Accuracy ClassClass 1
Overall Dimensions (mm)L350 × W440 × H1140
Approx. Weight (kg)80

Core Features

  1. Ultra-small mini C-frame structure, light weight and small footprint for limited-space workstations
  2. Servo closed-loop control for fine adjustment of force, position and speed
  3. Open C working area, convenient for small fixture change and manual loading
  4. Full-process curve recording to support quality traceability and automatic NG judgment
  5. Low noise, low vibration, suitable for R&D testing and small-batch micro-part assembly
