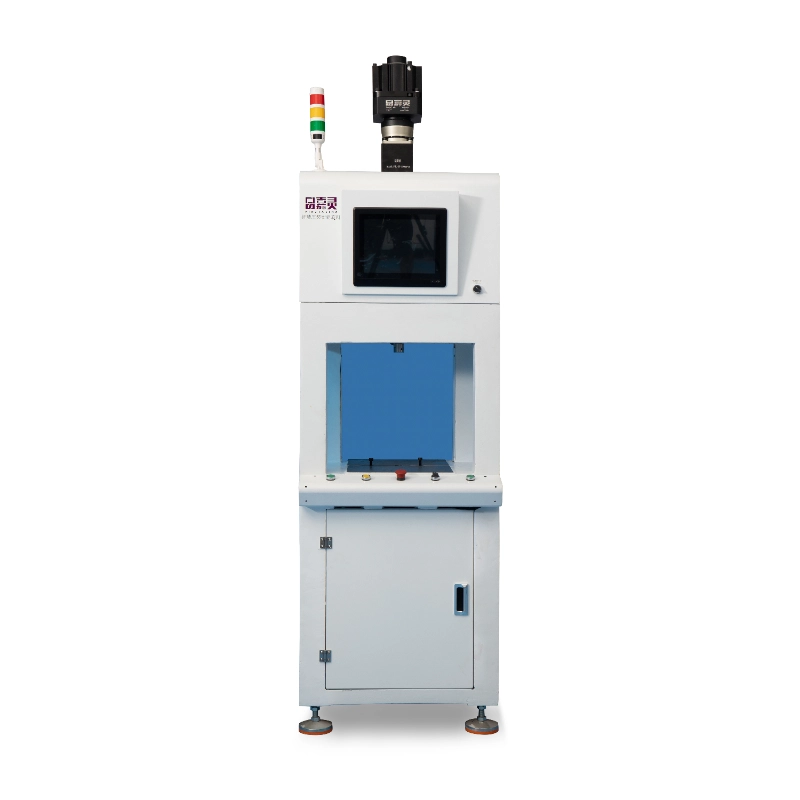

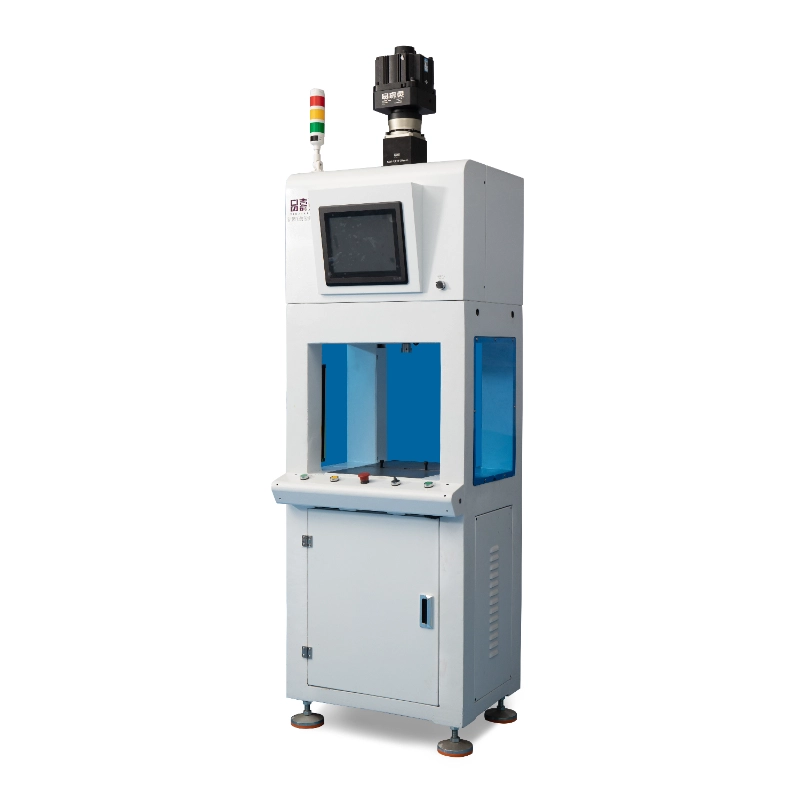

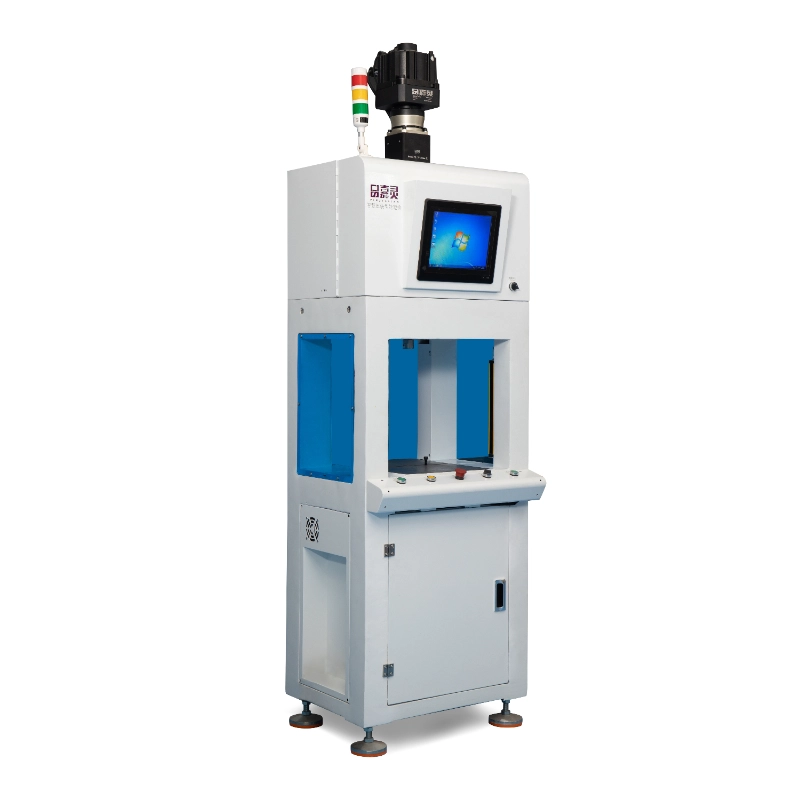

K-Type Intelligent Servo Press Machine

Send Inquiry

Contact Us For Bulk Price & Technical Specification

Product Overview

The K-Type Intelligent Servo Press Machine adopts a high-rigidity K-frame structure, optimized for heavy-load and high-stability precision pressing scenarios. Driven by servo electric cylinder, it realizes closed-loop control of pressing force, position, speed and stroke. Featuring strong anti-deformation performance and excellent structural stability, this machine supports real-time force-displacement curve monitoring, automatic OK/NG judgment and full pressing data traceability. It is widely used for high-load precision assembly in new energy, automotive, drive motor, aerospace and heavy structural component fitting. The K-type rigid frame guarantees consistent precision under long-duration heavy pressing loads.

Core Advantages

  1. High-rigidity K-frame for heavy load stability Reinforced K-shaped frame effectively reduces frame deflection under heavy pressure. It maintains long-term repeated pressing accuracy, suitable for large-size and high-load component assembly.
  2. Force & position dual closed-loop precision control Real-time synchronous monitoring of pressure and displacement. Accurately control pressing depth and force to avoid over-pressing or insufficient pressing for heavy-duty parts.
  3. Full-process data traceability & curve recording Automatically save force-displacement curves, peak force and displacement records. Support data export and MES connection, complying with IATF16949, AS9100 quality traceability requirements.
  4. Intelligent pass/fail judgment & flexible recipe management Set multi-section process windows for automatic OK/NG judgment and alarm stop. One-click save & recall of pressing programs for multi-product mixed production.

Application Industries

New energy heavy structural parts, automotive chassis components, drive motor stator & rotor pressing, aerospace structural fittings, large bearing assembly.

Technical Parameter Table

ParameterPJL-K-10KNPJL-K-20KNPJL-K-30KNPJL-K-50KN
Max. Pressure (kN)10203050
Effective Stroke (mm)200 (customizable)200 (customizable)200 (customizable)250 (customizable)
Force Resolution (%)0.050.050.050.05
Displacement Resolution (mm)0.0010.0010.0010.001
Max. Speed (mm/s)104104104104
Press-Fit Speed (mm/s)0.01–350.01–350.01–350.01–35
Pressure Range1N–10kN1N–20kN1N–30kN1N–50kN
Holding Time (s)0–6000–6000–6000–600
Positioning Accuracy (mm)±0.01±0.01±0.01±0.01
Pressure Accuracy ClassClass 1Class 1Class 1Class 1
Closed Height (mm)400400400400
Throat Depth (mm)245245245245
Overall Dimensions (mm)L700 × W620 × H2310L700 × W620 × H2310L700 × W620 × H2436L700 × W620 × H2556
Approx. Weight (kg)500600760850

Feature Highlights

All-electric servo drive, no hydraulic oil leakage, low noise and energy saving. Heavy-load optimized frame design for long-cycle continuous production. Support customized fixtures, safety light curtains and automatic line docking for smart workshop.
