Introduction

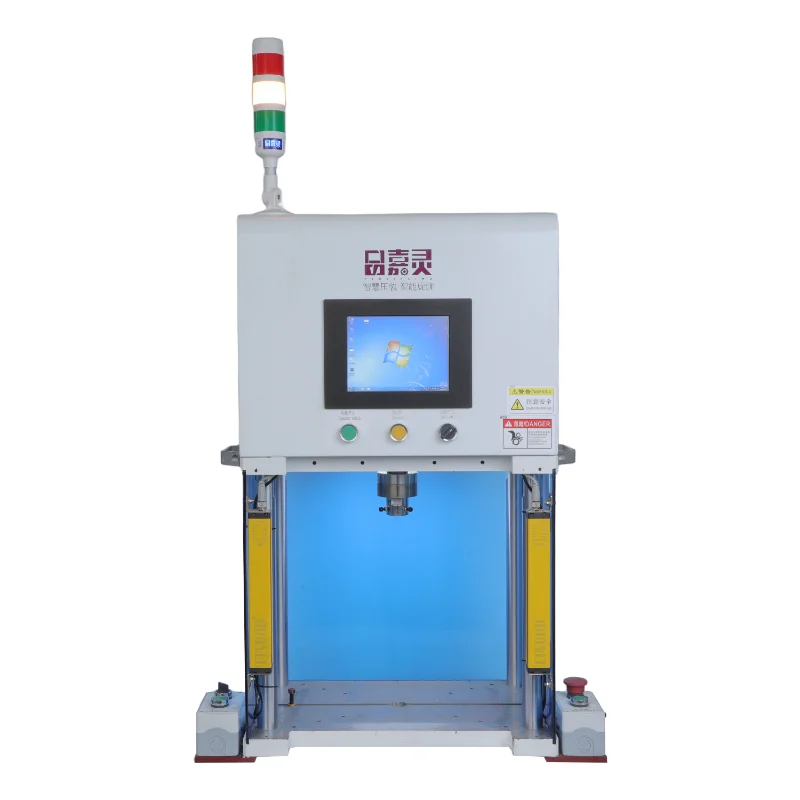

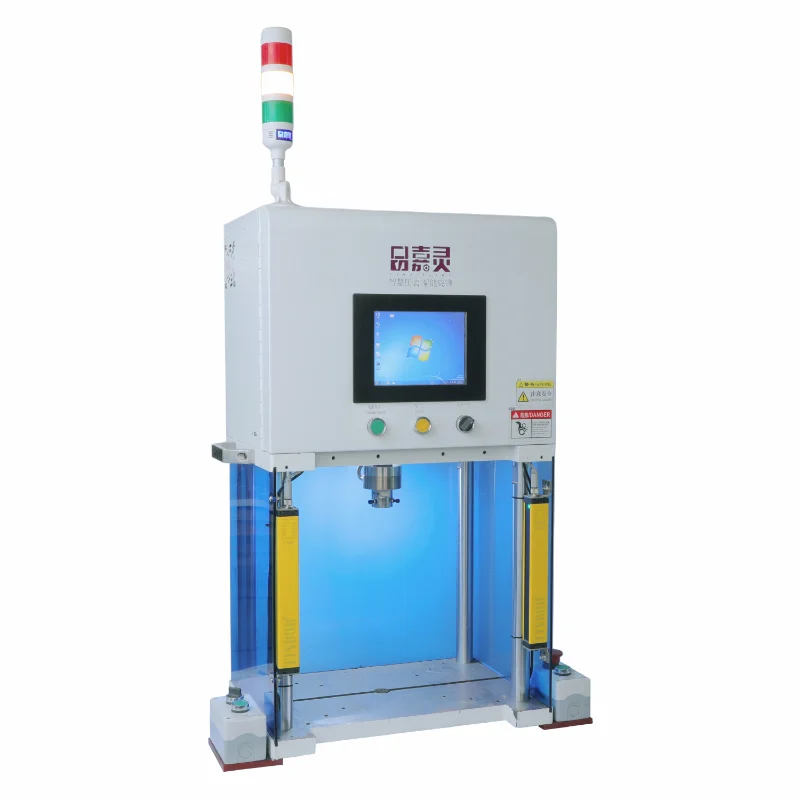

This desktop S-frame servo press machine features an S-shaped integrated rigid frame. Its optimized stress distribution minimizes frame deformation during eccentric press-fitting, delivering higher rigidity and better stability than conventional C-frame models. Powered by a servo electric cylinder with closed-loop force and position feedback, pressure, speed and dwell time are fully programmable.
It records real-time force-displacement curves and automatically sorts OK and NG workpieces. Product recipes can be stored on the touchscreen HMI. Suited for high-precision assembly of small parts requiring consistent accuracy under side load, it is widely used for automotive sensors, electronic components, small bearings and connector terminals in desktop workstations and R&D testing.
Specification Table
表格
| Item | Specification |
|---|---|
| Product Name | Desktop S-Frame Servo Press Machine |
| Rated Press Force | 500N / 1000N / 2000N / 3000N / 5000N (optional) |
| Working Stroke | 0–100 mm (customizable) |
| Positioning Accuracy | ±0.01 mm |
| Force Detection Accuracy | ±1% F.S. |
| Press Speed | 0.1–80 mm/s, programmable |
| Control System | Servo closed-loop control + Touchscreen HMI + PLC |
| Frame Structure | S-type high-rigidity cast frame, desktop installation |
| Data Function | Real-time force-displacement curve, recipe storage, NG alarm, USB export |
| Safety Protection | Safety light curtain, emergency stop, overload and over-travel protection |
| Power Supply | AC220V, 50/60Hz |
| Air Source | 0.4–0.6 MPa (optional, for fixture clamping) |
| Working Temperature | 0 ~ 45 ℃ |
| Application | Precision press-fit of sensors, small bearings, terminals and electronic components under eccentric load |
Core Features
- Optimized S-frame structure, uniform stress distribution and low deflection under eccentric pressing
- Compact desktop design, convenient for fixture setup and workstation integration
- Servo closed-loop control for precise adjustment of force, position and speed
- Full-process curve recording for quality traceability and automatic defect judgment
- Low vibration and quiet operation, ideal for mass small-part assembly and prototype verification
