Introduction

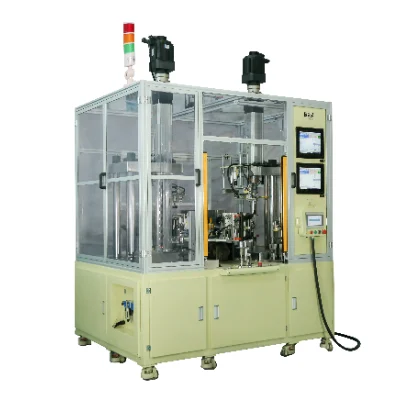

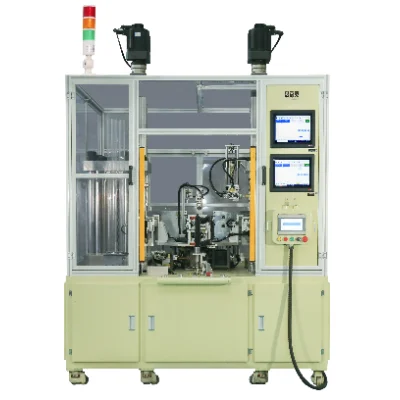

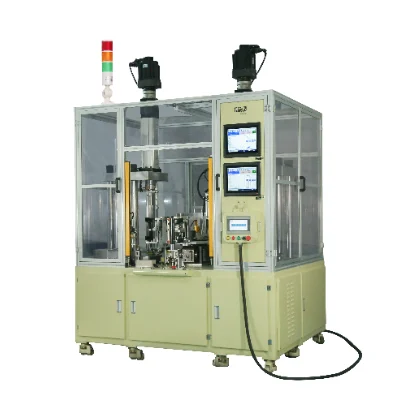

This servo press machine is specially developed for press-fitting assembly of motorcycle engine cradles. It adopts closed-loop servo electric cylinder drive, with customized fixture for cradle positioning. It is used for bushing, bearing and pin press-in operations on engine cradle assemblies.
The machine monitors force and displacement in real time during the whole pressing cycle, generates force-stroke curves and automatically judges OK/NG products. It supports parameter recipe storage for different cradle models, and all assembly data can be saved and exported for traceability, meeting the quality requirements of motorcycle engine mass production. It can be integrated with automatic feeding, positioning and safety guarding modules.
Specification Table
表格
| Item | Specification |
|---|---|
| Product Name | Servo Press Machine for Motorcycle Engine Cradle |
| Rated Press Force | 50kN / 80kN / 100kN / 150kN (optional) |
| Working Stroke | 0–300 mm (customizable) |
| Positioning Accuracy | ±0.01 mm |
| Force Detection Accuracy | ±1% F.S. |
| Press Speed | 0.1–80 mm/s, programmable |
| Control System | Servo closed-loop control + Touchscreen HMI + PLC |
| Working Table | Custom fixture base for engine cradle locating |
| Data Function | Real-time force-displacement curve, recipe save, NG alarm, USB data export |
| Safety Protection | Safety light curtain, emergency stop, overload & over-travel protection |
| Power Supply | AC380V, 50/60Hz |
| Air Source | 0.4–0.6 MPa (for fixture clamping) |
| Working Environment | 0 ~ 45 ℃, clean workshop |
| Application | Press fit of bearings, rubber bushings and pins for motorcycle engine cradle assembly |
Core Features
- Dedicated positioning fixture for motorcycle engine cradle, quick change for multiple product models
- Full-process force and position monitoring, curve recording and quality screening
- Adjustable pressing speed, pressure and holding time according to bushing assembly process
- Safety light curtain and interlock design to ensure operator safety
- Stable frame structure, good rigidity, suitable for medium-load cradle assembly line
