Introduction

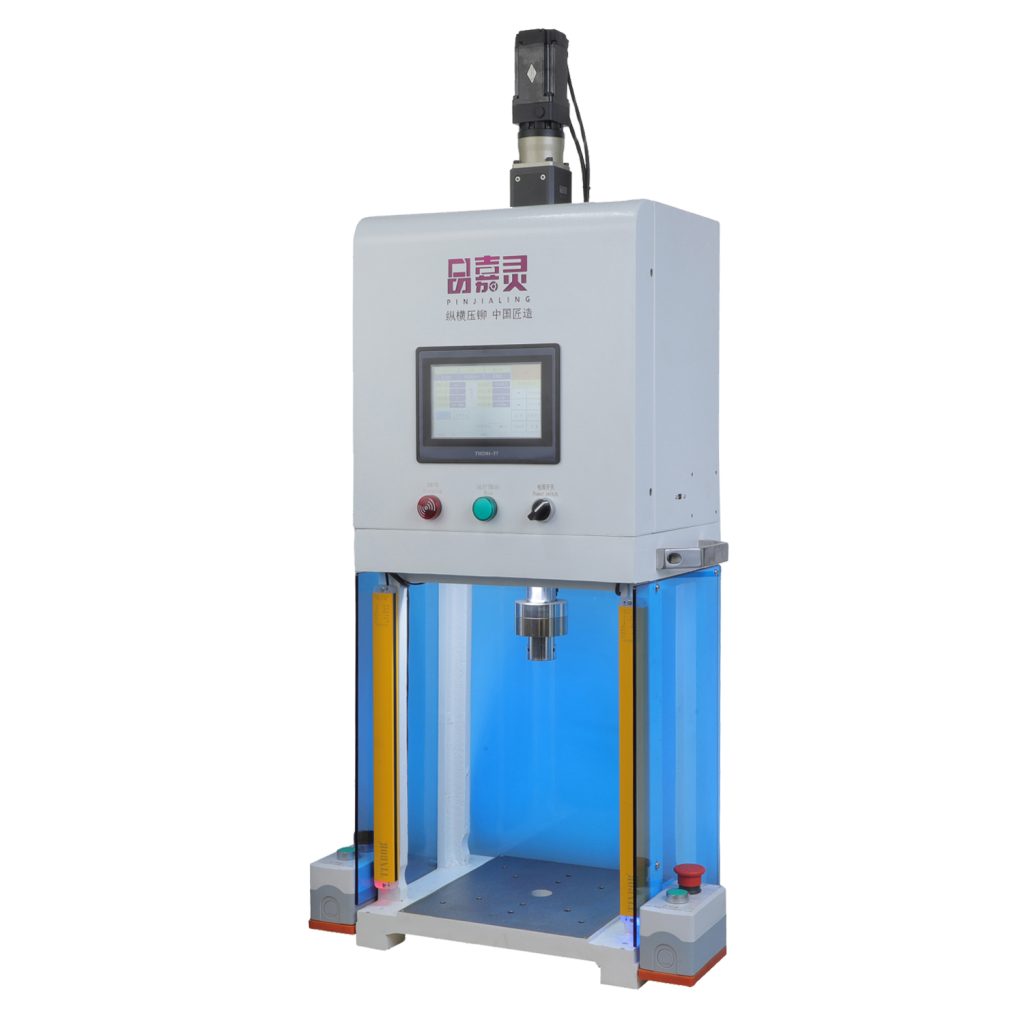

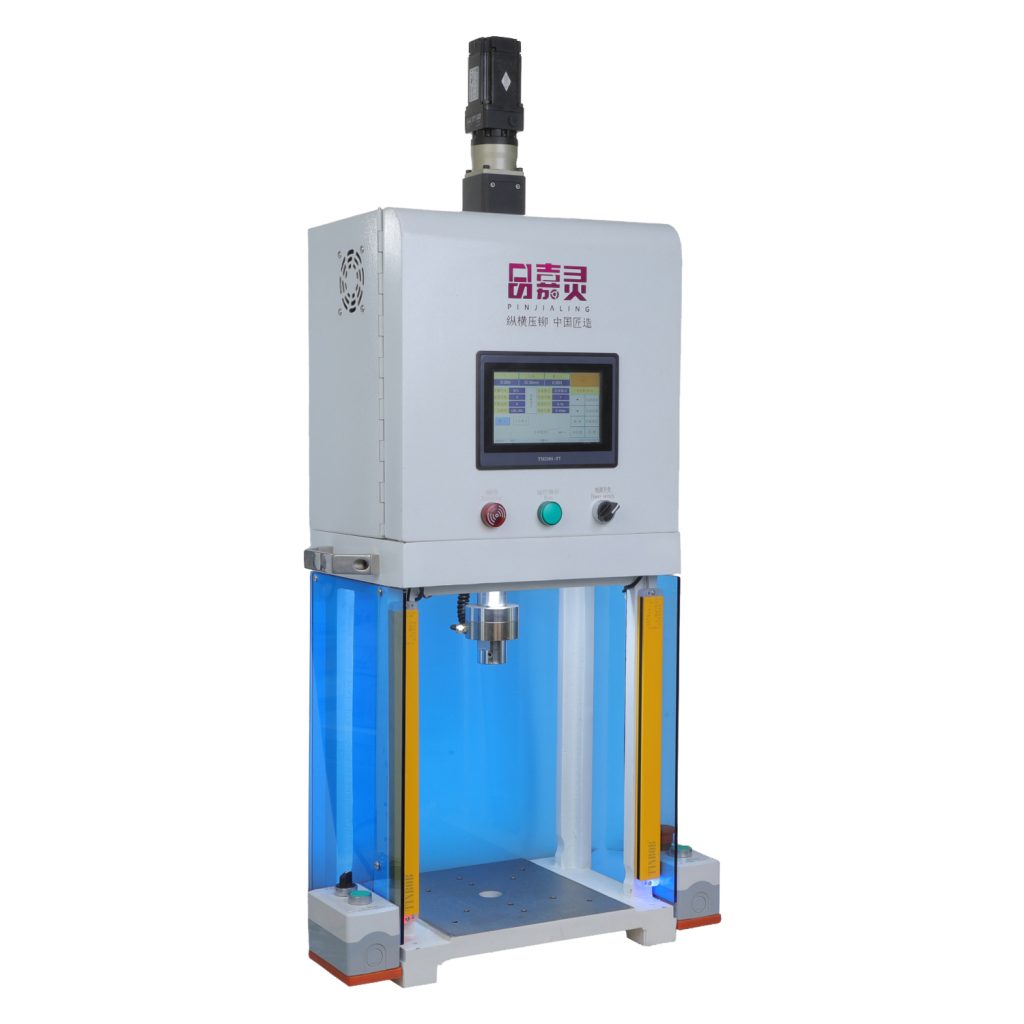

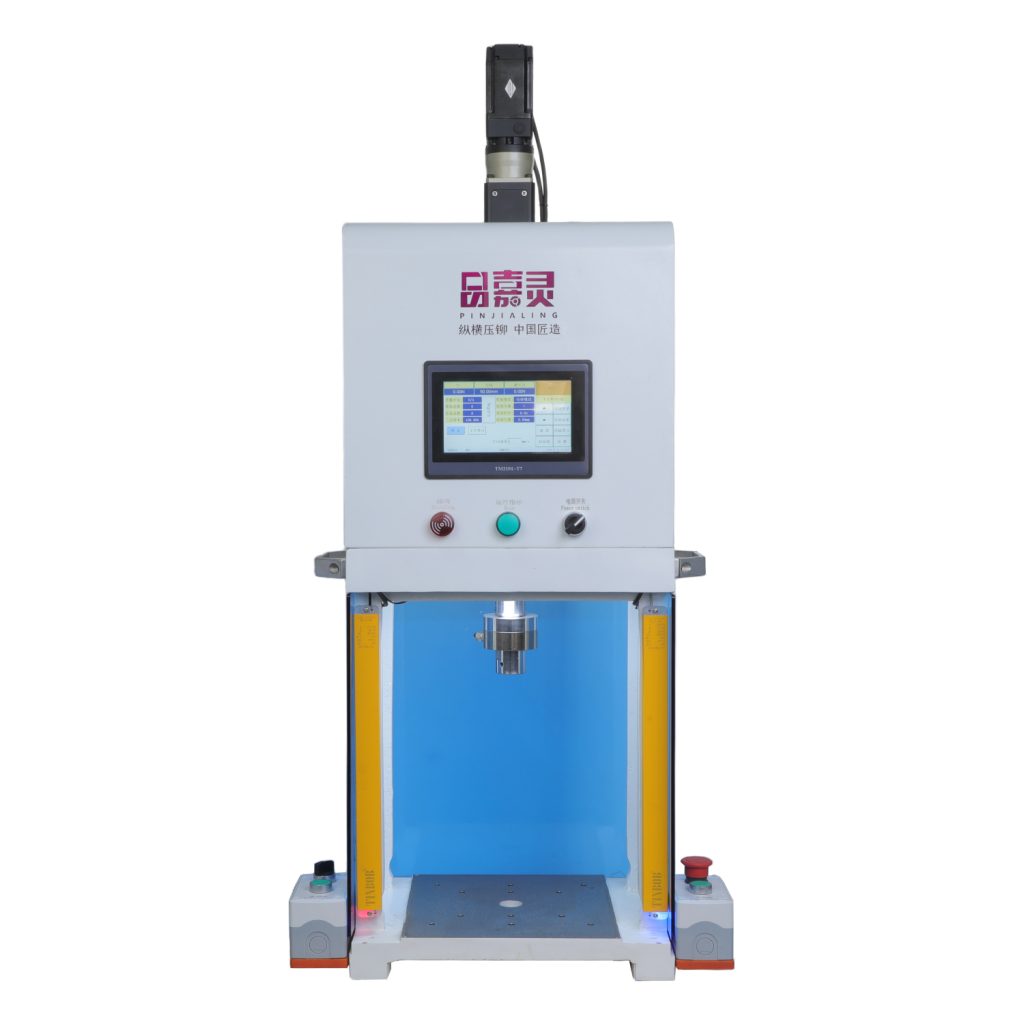

This desktop mini K-frame servo press machine adopts a compact triangular K-shaped rigid frame. Compared with mini C-frame models, it delivers better anti-deflection performance under eccentric load. Equipped with a small servo electric cylinder and closed-loop force & position feedback, pressure, speed and holding time are fully programmable.
It supports real-time force-displacement curve recording and automatic OK/NG judgment. Product recipes can be stored via touchscreen HMI. The small footprint makes it suitable for narrow workstations, commonly used for micro sensors, miniature bearings, tiny terminals and precision electronic component press-fitting as well as laboratory sample testing.
Specification Table
| Parameter | Specification |
|---|---|
| Model | PIL-K-5KN/10KN |
| Max. Pressure (kN) | 5/10 |
| Effective Stroke (mm) | 100–150 (customizable) |
| Servo Motor (mm) | 350 |
| Crossbeam (mm) | 140 |
| Force Resolution (%) | 0.05 |
| Displacement Resolution (mm) | 0.001 |
| Max. Speed (mm/s) | 125 |
| Press-Fit Speed (mm/s) | 0.01–35 |
| Holding/Dwell Time (s) | 0–600 |
| Positioning Accuracy (mm) | ±0.01 |
| Pressure Accuracy Class | Class 1 |
| Overall Dimensions (mm) | L543 × W300 × H1135 |
| Approx. Weight (kg) | 110 |
Core Features
- Mini K-frame triangular supporting structure, high rigidity and low deflection under offset pressing
- Ultra-compact desktop size, light weight for limited-space assembly stations
- Servo closed-loop control for precise adjustment of force, position and speed
- Full-cycle curve recording for quality traceability and defect auto-judgment
- Low vibration and quiet operation, ideal for R&D verification and small-batch micro-part assembly
