Introduction

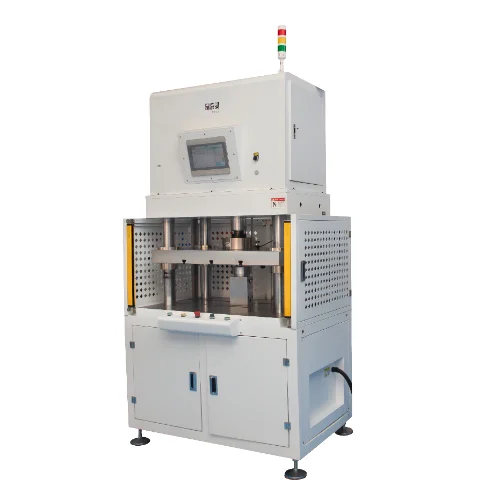

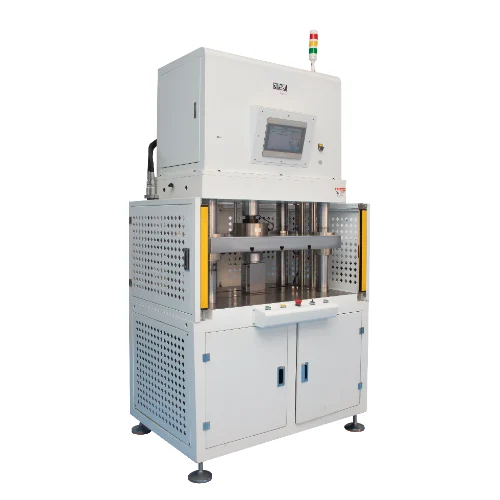

The servo hydraulic press combines servo motor control with a hydraulic power system. It uses a servo pump to regulate oil flow and pressure, delivering adjustable pressing force, speed and position. It retains the high-load advantage of traditional hydraulic presses while greatly improving energy efficiency, precision and controllability.
Compared with conventional hydraulic presses, it reduces idle power consumption, lowers heat generation and noise, and supports real-time force and position monitoring. It is widely used in metal stamping, forging, forming, trimming, composite material molding, plastic compression and heavy-duty press-fitting. It can store press curves and trigger alarms for out-of-spec parts to meet production traceability demands.
Parameter Table
表格
| Item | Specification |
|---|---|
| Drive System | Servo motor + servo hydraulic pump |
| Rated Press Force | 100kN ~ 10000kN (customizable) |
| Stroke | 100–800mm (customizable) |
| Positioning Accuracy | ±0.02 ~ ±0.05 mm |
| Force Control Accuracy | ±2% F.S. |
| Press Speed | 0.5–80 mm/s, adjustable |
| Control Mode | Closed-loop force / position / speed control |
| HMI | Touchscreen, recipe storage, curve recording |
| Power Supply | AC380V, 50/60Hz |
| Hydraulic Oil | 46# anti-wear hydraulic oil |
| Working Temperature | 10 ~ 45 ℃ |
| Protection | Overload, over-travel, oil temperature alarm |
| Application | Metal forming, stamping, forging, composite molding, heavy press fitting |
Core Features
- Servo pump control, energy-saving, low heat and low noise
- High large-tonnage output, stable for heavy forming work
- Real-time force-stroke curve recording for quality tracking
- Flexible speed and pressure setting for different forming processes
- Mature hydraulic structure with strong anti-load capacity
