Introduction

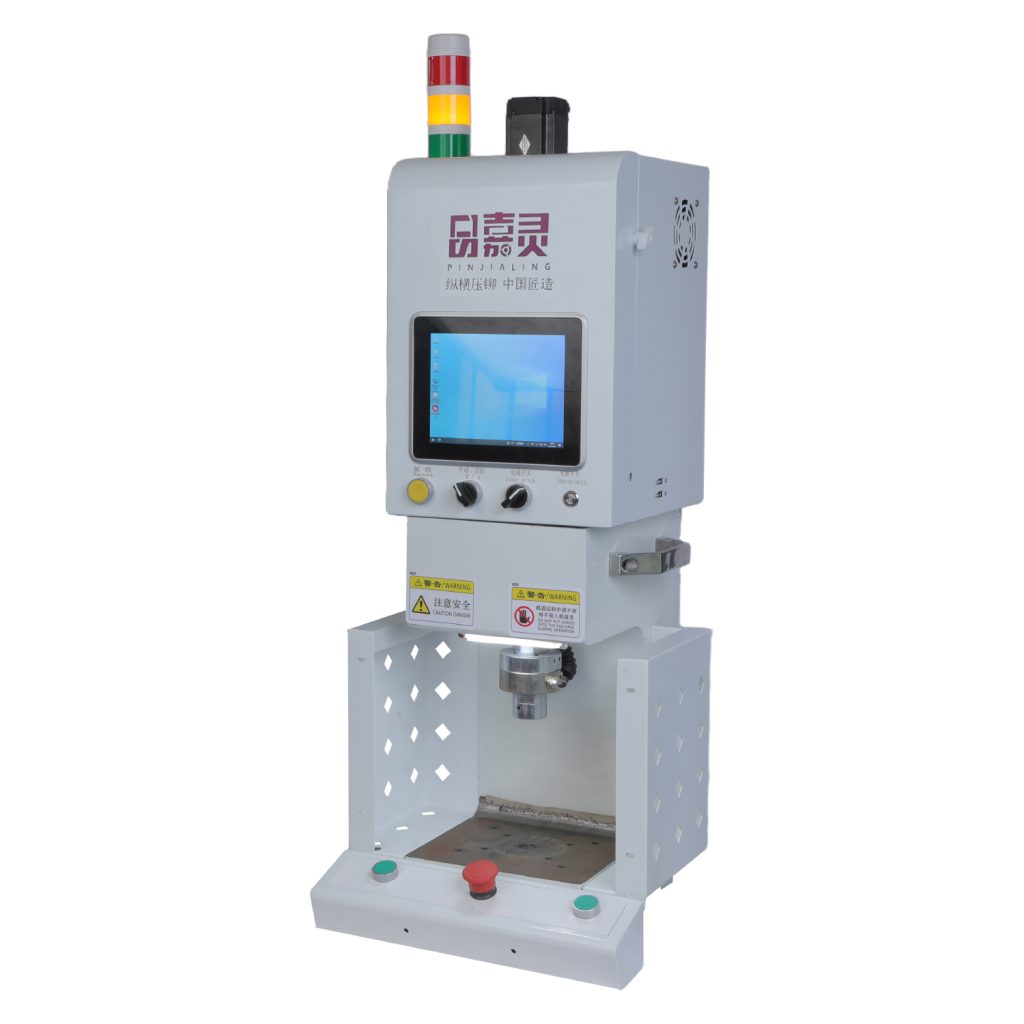

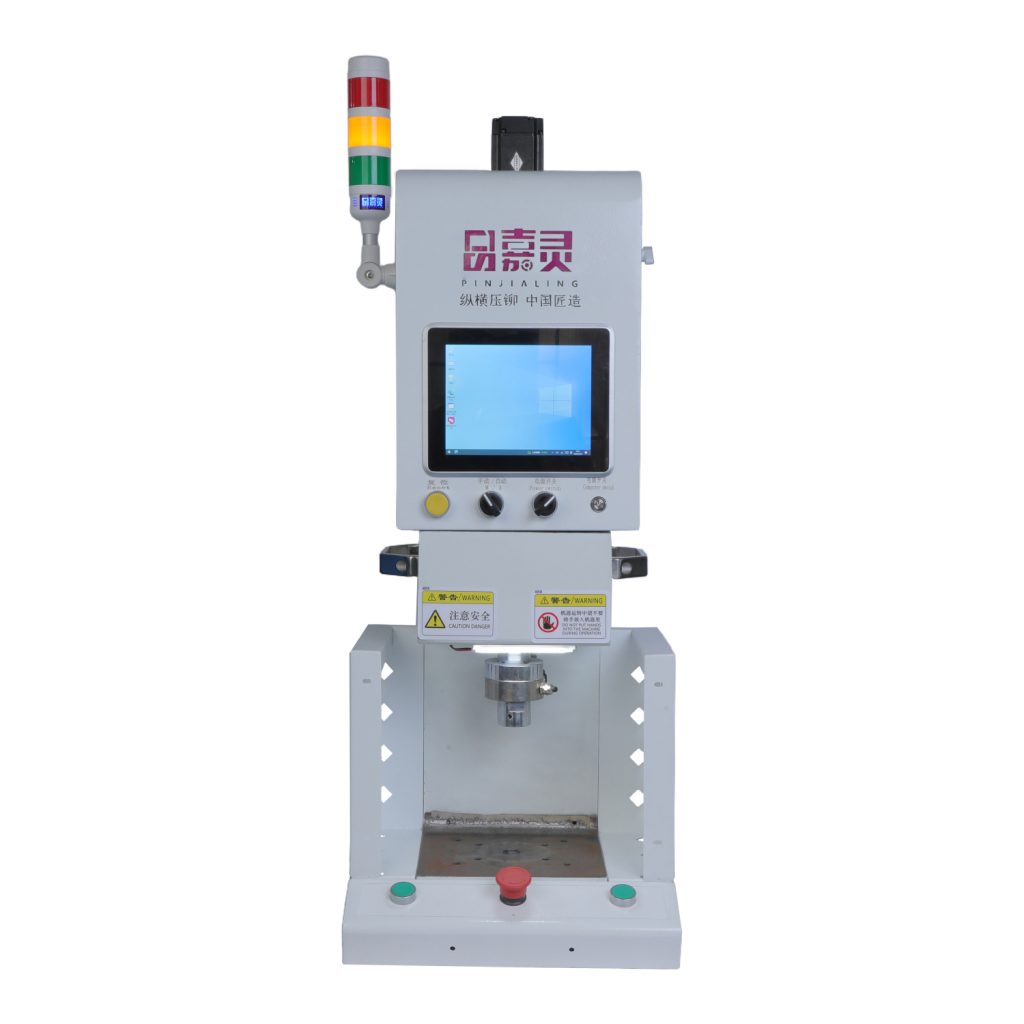

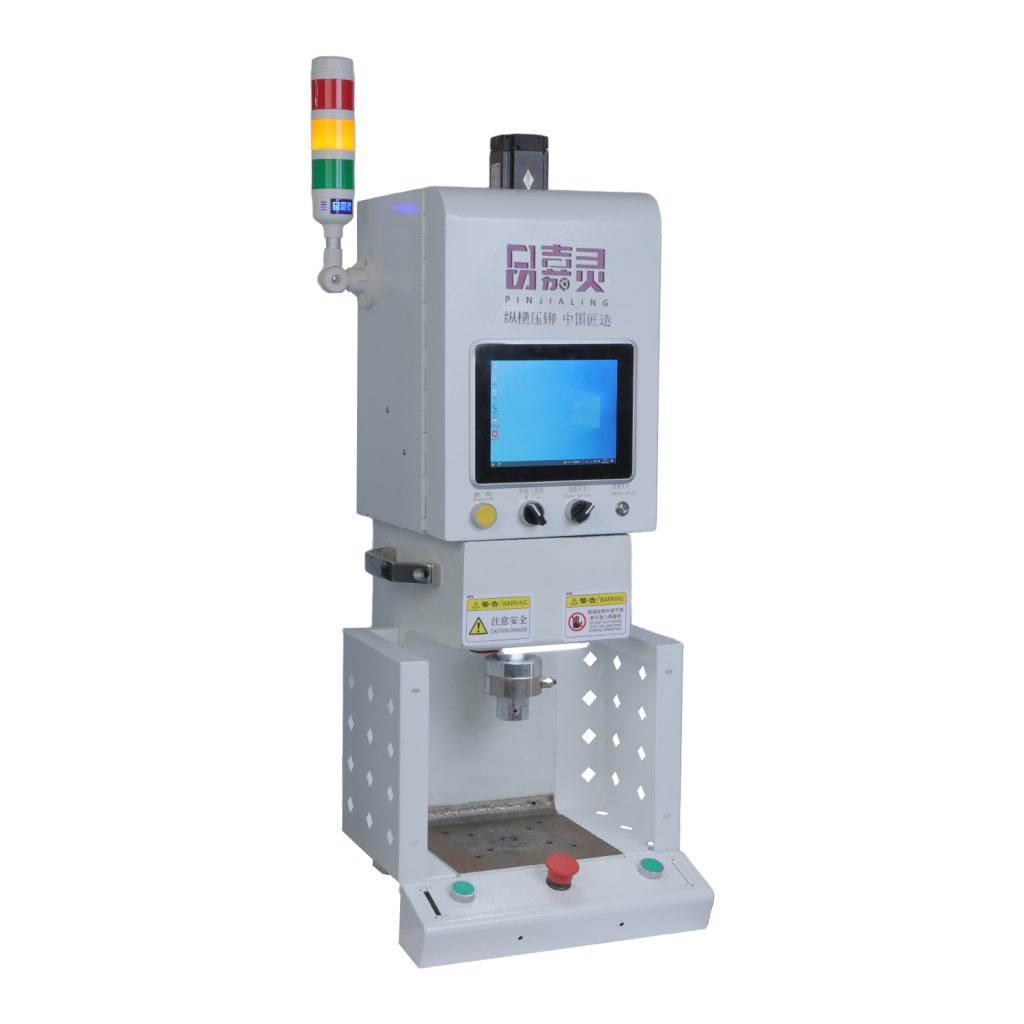

This desktop V-Frame servo press machine adopts a high-rigidity V-shaped integrated frame. The symmetrical V-type supporting structure provides excellent rigidity and strong anti-deformation capacity under central pressing load. Driven by servo electric cylinder with closed-loop force and position feedback, pressure, speed and holding time can be fully programmed.
It supports real-time force-displacement curve acquisition and automatic OK/NG judgment. Product recipes are stored via touchscreen HMI. It is suitable for high-precision press-fitting of small workpieces with concentrated center load, commonly used for electronic connectors, micro bearings, sensor components and terminal assembly in desktop stations and laboratory testing.
Specification Table
表格
| Item | Specification |
|---|---|
| Product Name | Desktop V-Frame Servo Press Machine |
| Rated Press Force | 500N / 1000N / 2000N / 3000N / 5000N (optional) |
| Working Stroke | 0–100 mm (customizable) |
| Positioning Accuracy | ±0.01 mm |
| Force Detection Accuracy | ±1% F.S. |
| Press Speed | 0.1–80 mm/s, programmable |
| Control System | Servo closed-loop control + Touchscreen HMI + PLC |
| Frame Structure | V-type high-rigidity cast frame, desktop mounting |
| Data Function | Real-time force-displacement curve, recipe storage, NG alarm, USB export |
| Safety Protection | Safety light curtain, emergency stop, overload and over-travel protection |
| Power Supply | AC220V, 50/60Hz |
| Air Source | 0.4–0.6 MPa (optional, for fixture clamping) |
| Working Temperature | 0 ~ 45 ℃ |
| Application | Precision central-load press-fit of connectors, micro bearings, sensors and electronic terminals |
Core Features
- Symmetrical V-frame supporting design, outstanding rigidity and minimal deflection for centered pressing
- Compact desktop layout, easy fixture replacement and workstation integration
- Servo closed-loop control for precise tuning of force, position and speed
- Full-cycle curve recording for quality traceability and automatic defect screening
- Low vibration and low noise, stable for prototype testing and small batch precision assembly
